PRO SMPTE HDTV 4K : Carro de Fibra Óptica Táctica Profesional. Cable ⌀ 9.2mm
SMPTE Professional Fiber Optic Carriage for Events and Broadcasting
Cable táctico militar de fibra óptica para eventos profesionales de Broadcast, audiovisuales y streaming 4K.
· Cable de fibra óptica táctica profesional de ⌀ 9,2mm con recubrimiento de categoría militar PUR o PVC Flexible basado en la norma MIL-C-8504.
· Refuerzo estructural avanzado de alta resistencia mecánica, preparado para cargas intensivas y entornos climatológicos adversos.
· Disponible en MonoModo OS2 (9/125μm).
· Conectores profesionales Lemo 3K.93C.
· Compatible con protocolos profesionales:
* SMPTE 292M → HD-SDI (1.5G)
* SMPTE 424M → 3G-SDI
* SMPTE 2081 → 6G-SDI
* SMPTE 2082 → 12G-SDI
Permite transportar simultáneamente:
Vídeo broadcast HD / UHD 4K
Audio digital
Control de cámara
Intercom y tally
Alimentación eléctrica para cámara
· Aplicaciones ideales: broadcast, eventos en directo, emisiones de televisión y streaming profesional.
· Carrete incluido de alta resistencia: carro con puerta frontal de pestillo, asa superior ergonómica y freno de bloqueo trasero.
· Producto testeado en laboratorio con certificación de calidad.
· Diseñado y fabricado por FTL en Europa.
Technical specifications:
PRO SMPTE Lemo HDTV 4K:
Element 1: Auxiliary Conductors AWG20 (4 x 0.6 mm2)
Conductor tinned stranded copper wires, 19 x 0.20 mm, diameter 1.0 mm
Insulation HDPE, diameter 1.5 mm (FRNC-C = LSOH)
Identification 2 x black, 2 x white
Element 2: Signal Conductors AWG24 (2 x 0.22 mm2)
Conductor tinned stranded copper wires, 7 x 0.20 mm, diameter 0.6 mm
Insulation HDPE, diameter 1.1 mm (FRNC-C = LSOH)
Identification 1 x red, 1 x grey
Element 3: Fibre Optic Simplex Single Mode (2 x 9/125μ) (BBXS)
Mode field diameter at 1310 nm, diameter 9.5 μm ± 1 μm
Cladding diameter diameter 125 μm ± 1 μm
Concentricity error ≤ 1 μm
Coating material UV-cross-linked Acrylate, diameter 245 μm
Buffer material Thermoplastic, diameter 0.9 μm ± 0.05 μm
Identification 1 x blue, 1x yellow
Strength Element Aramid yarn
Sheath 1 x blue, 1x yellow, diameter 1.6 mm
Element 4: Strength Member AWG16 (1 x 1.22 mm2)
Conductor galvanized steel wires, diameter 1.6 mm
Insulation HDPE, diameter 2.1 mm (FRNC-C = LSOH)
Identification 1 x white
Stranding Core: 1x Element 4, diameter 2.1 mm
Layer: 4x Element 1 + 2x Element 2 + 2x Element 3, diameter 5.2 mm
Sequence according to the above drawing
Wrapping 1 x non-woven fabric tape, diameter 5.4 mm
Temperature range PUR uring operation - 40° C to + 70° C ( -25°C to +70°C)
Max. humidity 95 %
PRO SMPTE HDTV 4K:
Lemo 3K.93C: PUW
Lemo 3K.93C: FUW
Certifications and standards:
Exceed GR-326-CORE performance requirements.
Conforms to IEC 61754-20.
UL listed and certified random coupling.

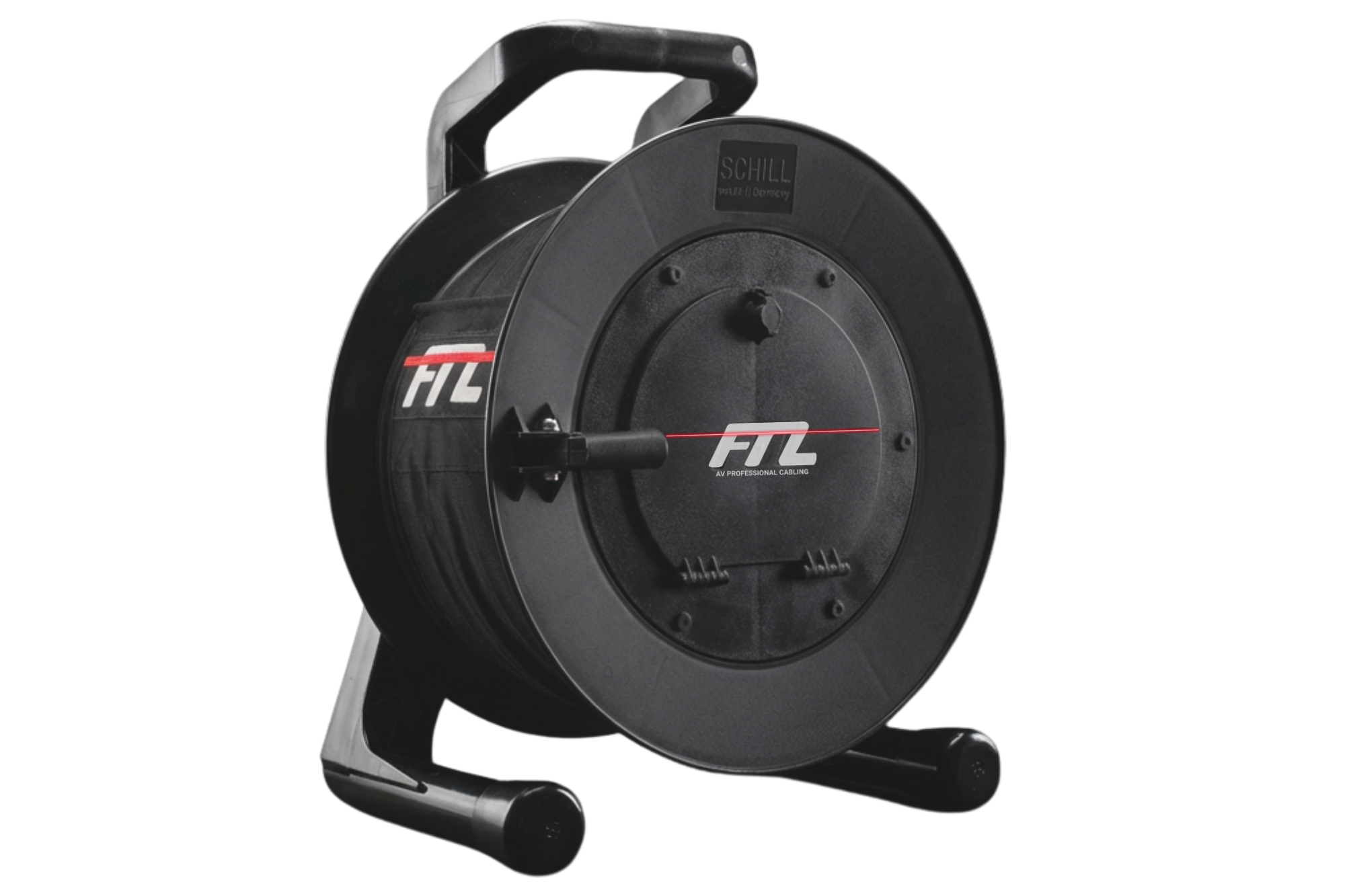

REEL SCHILL GT310
Material:
Made of high quality ABS PVC for maximum strength and durability.
Main features:
Front door with locking latch (made of ABS PVC).
Ergonomic top handle for easy transport.
Rear safety locking brake.
Moisture resistant.
Reel dimensions:
Reel 310mm x 367mm x 230mm
Door: Ø 200mm

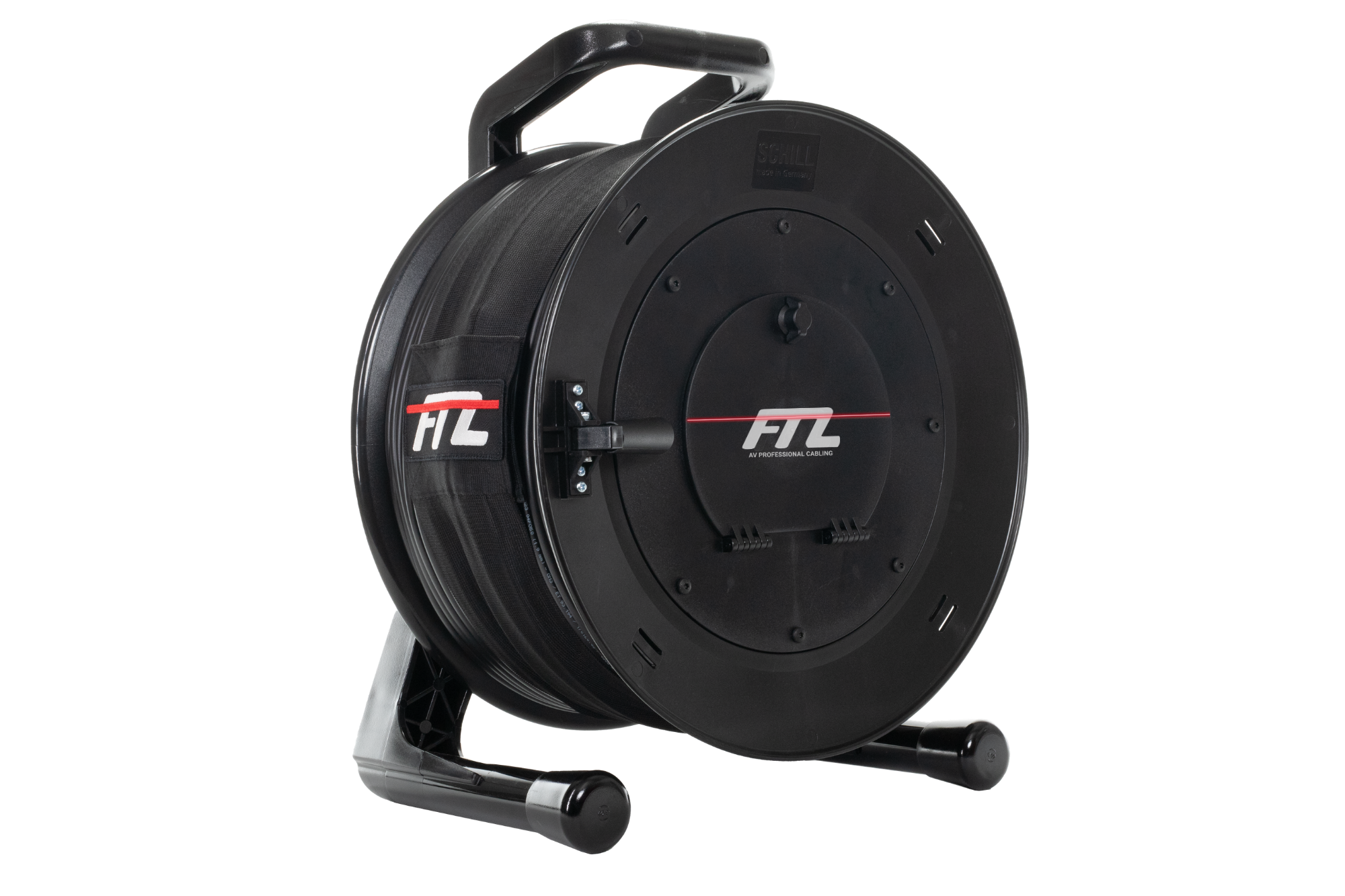

REEL SCHILL GT380
Material:
Made of high quality ABS PVC for maximum strength and durability.
Main features:
Front door with locking latch (made of ABS PVC).
Ergonomic top handle for easy transport.
REEL SCHILL HT485
Material:
Made of high quality STEEL for maximum strength and durability.
Main features:
Front door with locking latch (made of ABS PVC).
Ergonomic top handle for easy transport.
Rear safety locking brake.
Moisture resistant.
Reel dimensions:
Reel: 460mm x 547mm x 290mm
