PRO4 (RF Edition): Carro de Fibra Óptica Táctica Profesional (4 Canales). Cable ⌀ 5,6mm

Cable táctico militar de fibra óptica con refuerzo de Kevlar para comunicar sistemas RF de audio inalámbrico tales como Wysicom, BSRF, RF Venue (Optix), Audio LTD, Zaxcom.

·        Cable de fibra óptica táctica profesional de ⌀ 5,6mm con recubrimiento de categoría militar PUR basado en la norma MIL-C-85045 y refuerzo interior de Kevlar (aramida trenzada).

·        Alta resistencia y preparado para cargas de trabajo intensivas con condiciones climatológicas adversas.

·        Disponible en MonoModo OS2 (9/125μm)

·        Conectores profesionales reforzados LC/UPC, SC/APC simplex o dúplex®.

·        Compatible con sistemas Neutrik OpticalCON®.

·       Aplicaciones ideales: broadcast, eventos en directo, emisiones de televisión y streaming profesional.

·        Carrete incluido de alta resistencia: carro con puerta frontal de pestillo, asa superior ergonómica y freno de bloqueo trasero.

·        Producto testeado en laboratorio con certificación de calidad.

·        Diseñado y fabricado por FTL en Europa.

Technical specifications:

PRO4 . RF Edition . CABLE

Fiber Type:

SingleMode OS2 (9/125μm)

Cable Structure:

Ultra-flexible black cable (Ø 5,6 mm).

Military PUR coating according to MIL-C-85045 standards.

Protection with inner reinforcement strand in Kevlar (braided aramid).

Mechanical properties:

Excellent mechanical strength and high flexibility

Fully dielectric (electrical insulation guaranteed)

Maximum tensile load: 600/1100 N

Maximum pressure load: 2000 N

Environmental resistance:

Resistant to humidity and ultraviolet (UV) radiation.

Operating Temperature: from -40ºC to +70ºC.

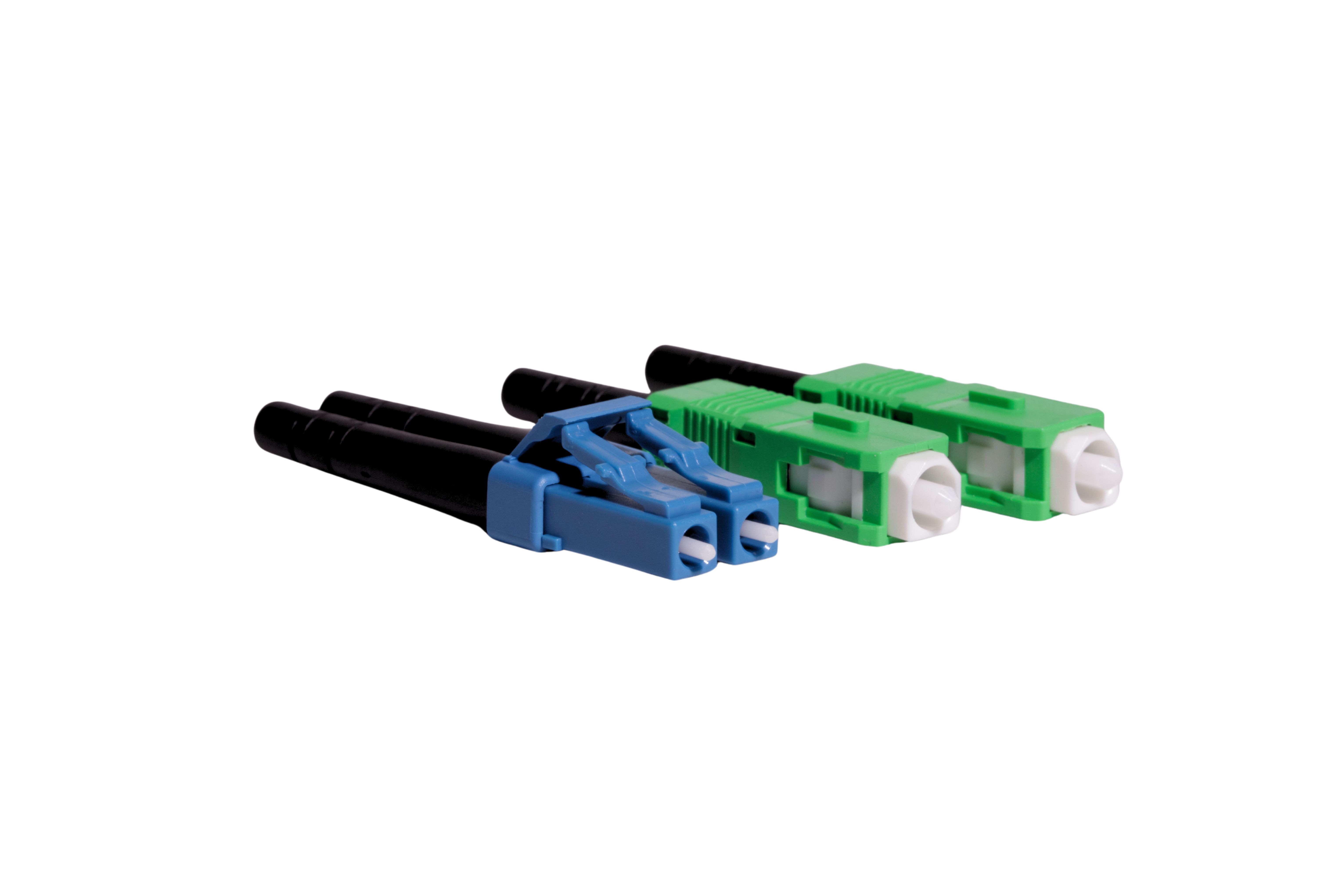

PRO4 CONNECTIONS

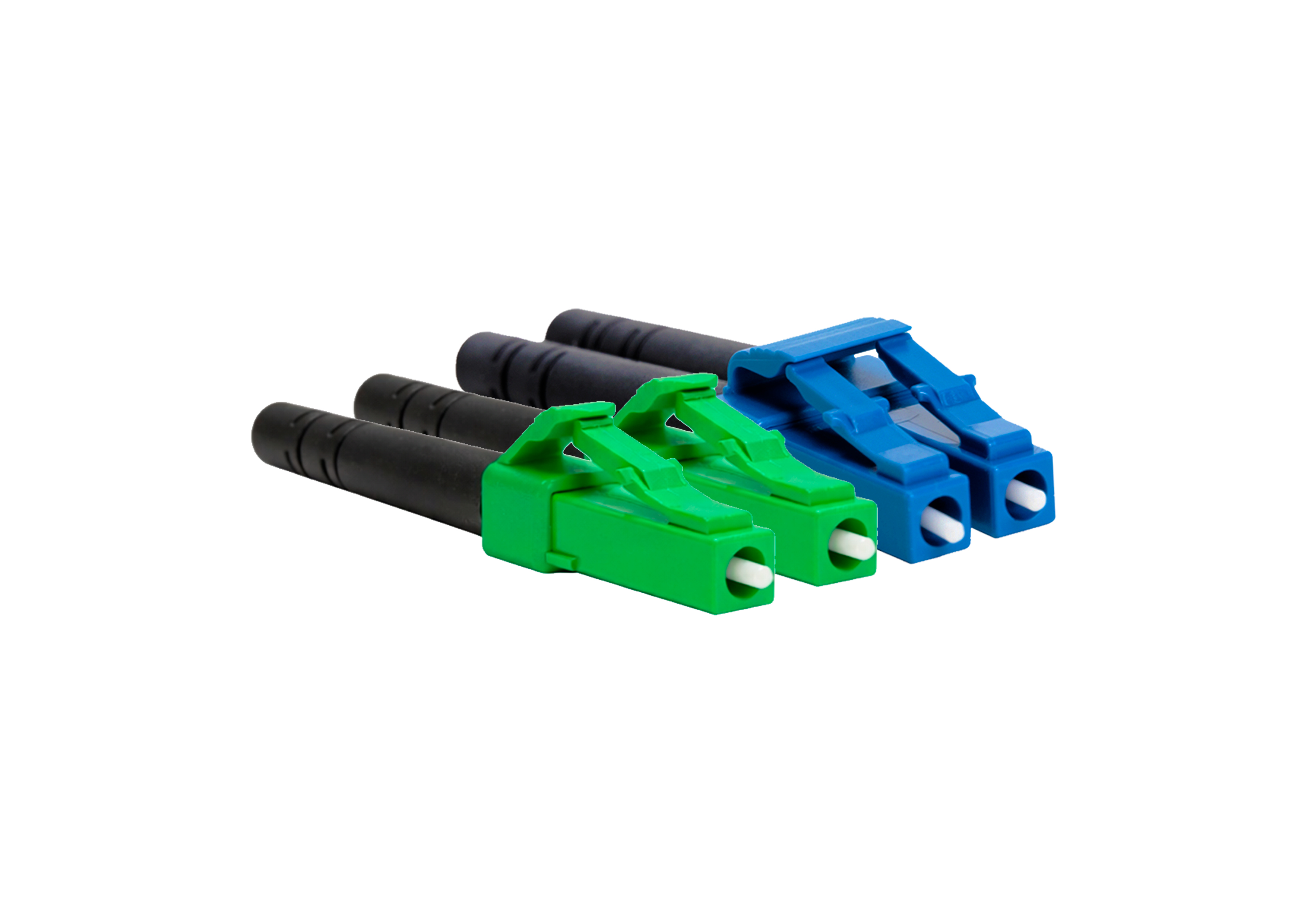

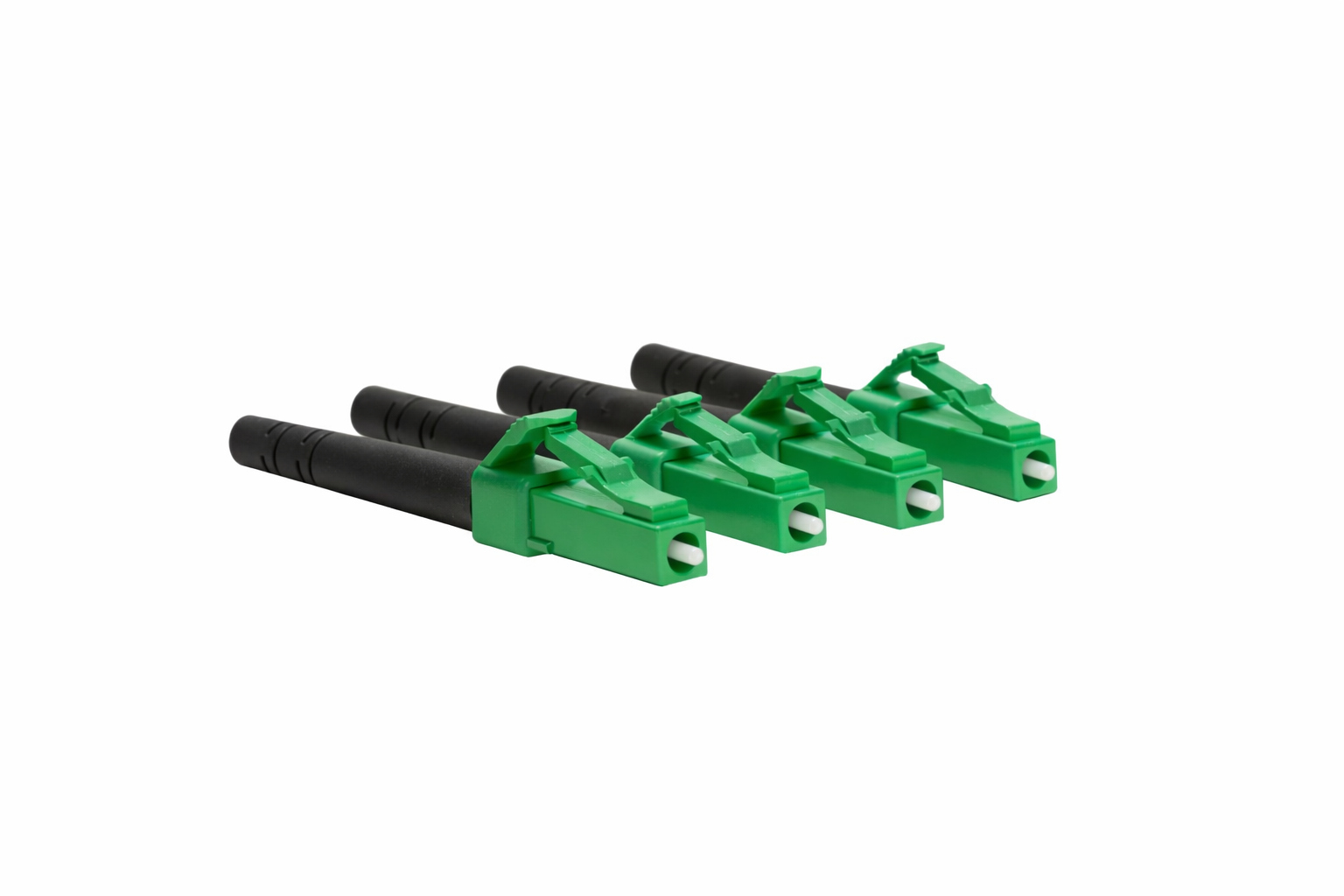

LC / APC Simplex PRO ®: Single chassis independent connectors manufactured in high performance PVC and precision alignment.

LC / UPC Simplex-Duplex PRO ®: Matched single-chassis connectors made of high-performance, precision-aligned PVC.

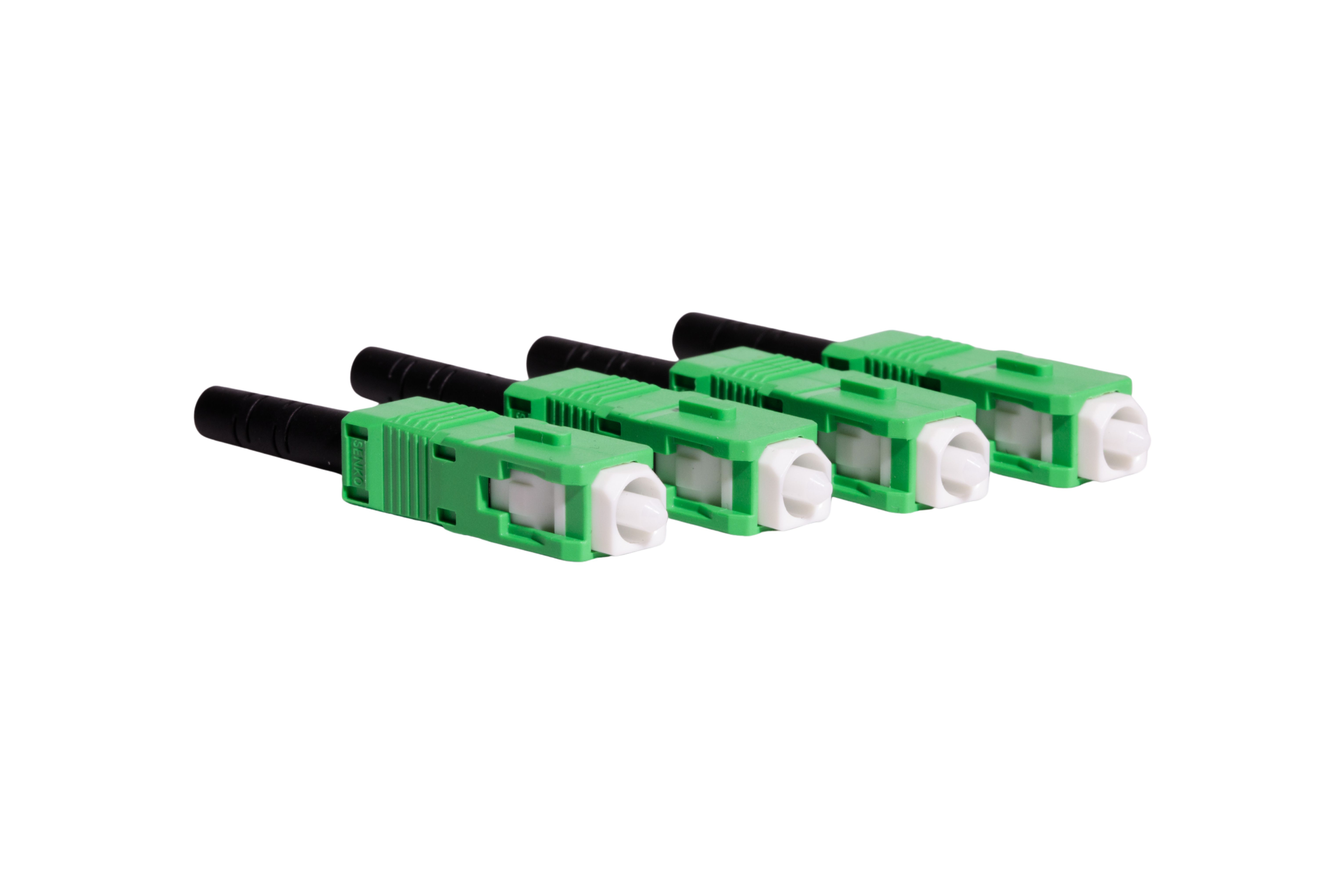

SC / APC Simplex PRO ®: Single chassis independent connectors manufactured in high performance PVC and precision alignment.

Certifications and standards:

• Exceed GR-326-CORE performance requirements.

• Conforms to IEC 61754-20.

• UL listed and certified random coupling.

REEL ROX R310

Material:
Made of high quality ABS PVC for maximum strength and durability.

Main features:

• Front door with locking latch (made of ABS PVC).

• Ergonomic top handle for easy transport.

• Rear safety locking brake.

• Moisture resistant.

Reel dimensions:

• Reel 292mm x 391.7mm x 240.5mm

REEL ROX R380

Material:
Made of high quality ABS PVC for maximum strength and durability.

Main features:

• Front door with locking latch (made of ABS PVC).

• Ergonomic top handle for easy transport.

• Rear safety locking brake.

• Moisture resistant.

Reel dimensions:

• Reel: 338mm x 488.2mm x 340.6mm

REEL SCHILL GT450

Material:
Made of high quality ABS PVC for maximum strength and durability.

Main features:

• Front door with locking latch (made of ABS PVC).

• Ergonomic top handle for easy transport.

• Rear safety locking brake.

• Moisture resistant.

Reel dimensions:

• Reel: 445mm x 555mm x 310mm

REEL SCHILL HT485

Material:
Made of high quality STEEL for maximum strength and durability.

Main features:

• Front door with locking latch (made of ABS PVC).

• Ergonomic top handle for easy transport.

• Rear safety locking brake.

• Moisture resistant.

Reel dimensions:

• Reel: 460mm x 547mm x 290mm

PROFESSIONAL CONNECTOR PROTECTION PRO4

Protective caps:

• Made of high quality black aluminum for strength and durability.

Protective caps:

• High resistance rubber stopper.

Environmental resistance:

• Protection against humidity and ultraviolet (UV) rays.

EXTERNAL PROTECTION OF THE PRO4 CABLE

Outer protective mesh:

• Made of braided nylon with reinforced polyamide monofilaments.

Main characteristics:

• High resistance to abrasion.

• Excellent durability for intensive use.

• Effective protection against humidity and ultraviolet radiation (UV).

INDIVIDUAL FIBER PROTECTION PER CHANNEL

Outer cover:

• Military grade black coating for superior protection.

Internal Structure:

• Internal reinforced armor (armor plating) that guarantees additional resistance.

Outstanding features:

• High mechanical resistance.

• Excellent flexibility for easy handling and installation.

• Effective resistance to humidity and ultraviolet radiation (UV).

FANOUT PRO4 (Fiber splitter)

External construction:

• Manufactured from high quality aluminum, designed for maximum strength and durability.

Environmental resistance:

• Totally watertight, resistant to moisture and ultraviolet (UV) rays.

CABLE SECTION PRO4 - 5,6 mm

4 SingleMode OS2 fibers (9/125μm)
