PRO4: Carro de Fibra Óptica Táctica Profesional (4 Canales). Cable ⌀ 5,6mm

Cable táctico militar de fibra óptica con refuerzo de Kevlar para eventos profesionales de Broadcast, audiovisuales y streaming 4K/8K.

·        Cable de fibra óptica táctica profesional de ⌀ 5,6mm con recubrimiento de categoría militar PUR basado en la norma MIL-C-85045 y refuerzo interior de Kevlar (aramida trenzada).

·        Alta resistencia y preparado para cargas de trabajo intensivas con condiciones climatológicas adversas.

·        Disponible en MonoModo OS2 (9/125μm) y MultiModo OM3 / OM4 (50/125μm).

·        Conectores profesionales reforzados LC/UPC, SC/UPC simplex o dúplex®.

·        Compatible con sistemas Neutrik OpticalCON®.

·        Compatible con protocolos profesionales:

         Vídeo: SMPTE ST-2110, NDI HX3, VoIP.

         Audio: DANTE, MADI.

         Iluminación: Art-Net.

·        Preparado para señales de video HDMI, DisplayPort, HD, Full HD, 2K, 4K y 8K.

·        Soporta conversión SDI en 3G, 6G y 12G.

·        Transmisión Ethernet RJ45 y transceptores SFP: 1G, 10G, 40G. Compatible con Senders LED 4K Novastar.

·        Hasta 10 Gbps de ancho de banda por canal, con mínima latencia y pérdidas extremadamente bajas incluso en despliegues de más de 300 metros.

·        Hasta 10 Gbps de ancho de banda por canal, con mínima latencia y pérdidas extremadamente bajas incluso en despliegues de más de 300 metros·

·        Aplicaciones ideales: broadcast, eventos en directo, emisiones de televisión y streaming profesional.

·        Carrete incluido de alta resistencia: carro con puerta frontal de pestillo, asa superior ergonómica y freno de bloqueo trasero.

·        Producto testeado en laboratorio con certificación de calidad.

·        Diseñado y fabricado por FTL en Europa.

Technical specifications:

PRO4 CABLE

Fiber Type:

MultiMode OM3 (50/125μm)

MultiMode OM4 (50/125μm)

SingleMode OS2 (9/125μm)

Cable Structure:

Ultra-flexible black cable (Ø 5,6 mm).

Military PUR coating according to MIL-C-85045 standards.

Protection with inner reinforcement strand in Kevlar (braided aramid).

Mechanical properties:

Excellent mechanical strength and high flexibility

Fully dielectric (electrical insulation guaranteed)

Maximum tensile load: 600/1100 N

Maximum pressure load: 2000 N

Environmental resistance:

Resistant to humidity and ultraviolet (UV) radiation.

Operating Temperature: from -40ºC to +70ºC.

PRO4 CONNECTIONS

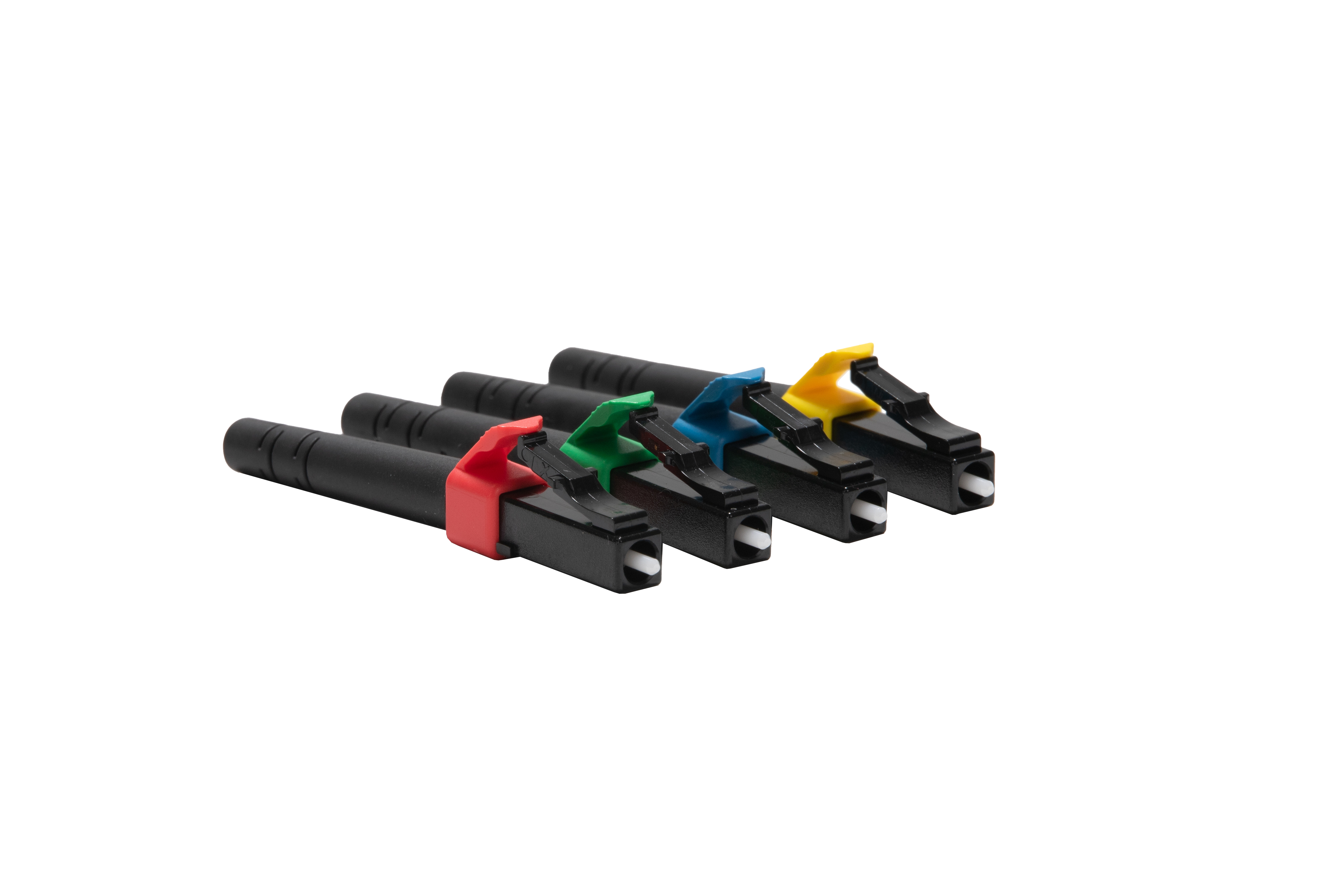

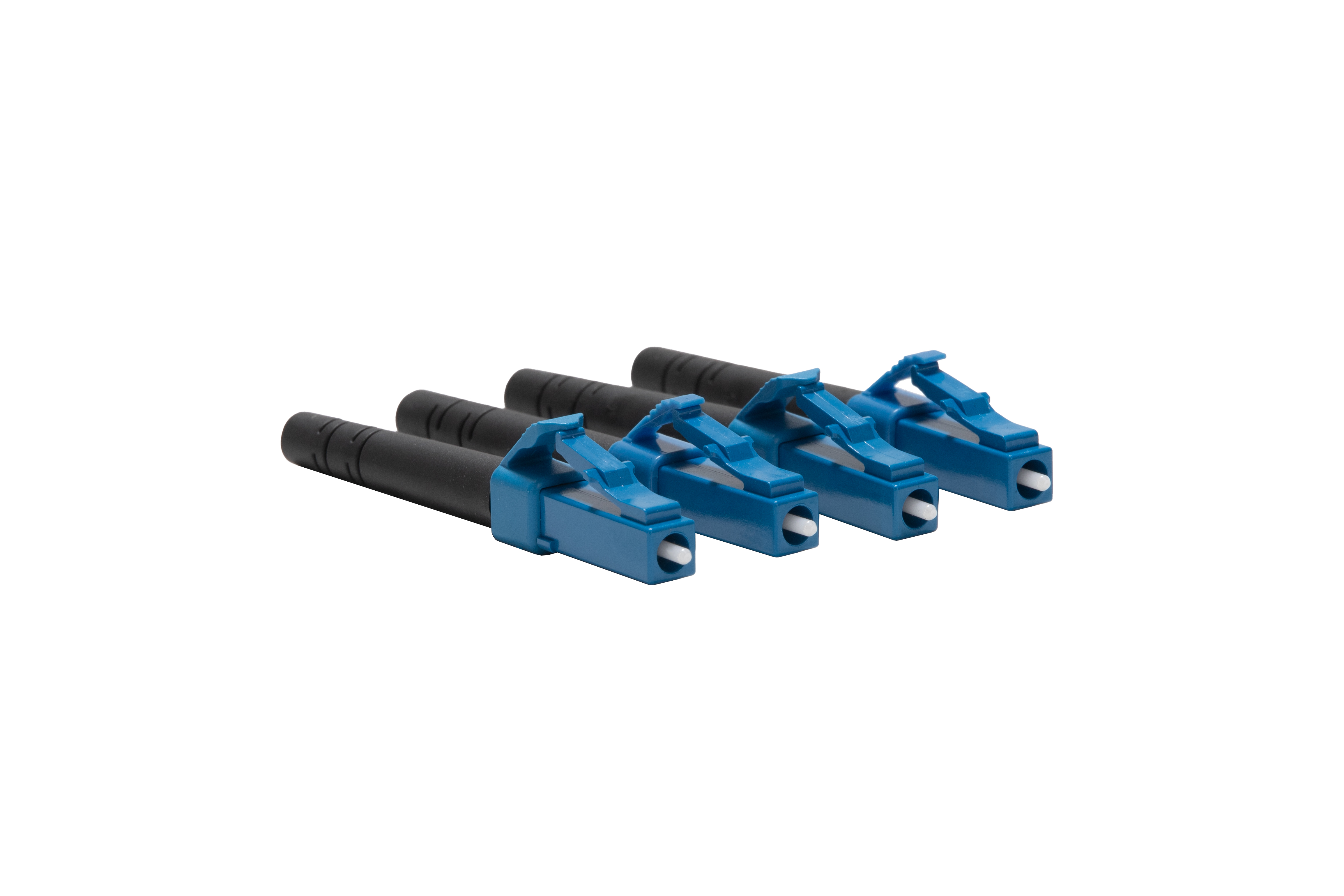

LC / UPC Simplex PRO ®: Single chassis independent connectors manufactured in high performance PVC and precision alignment.

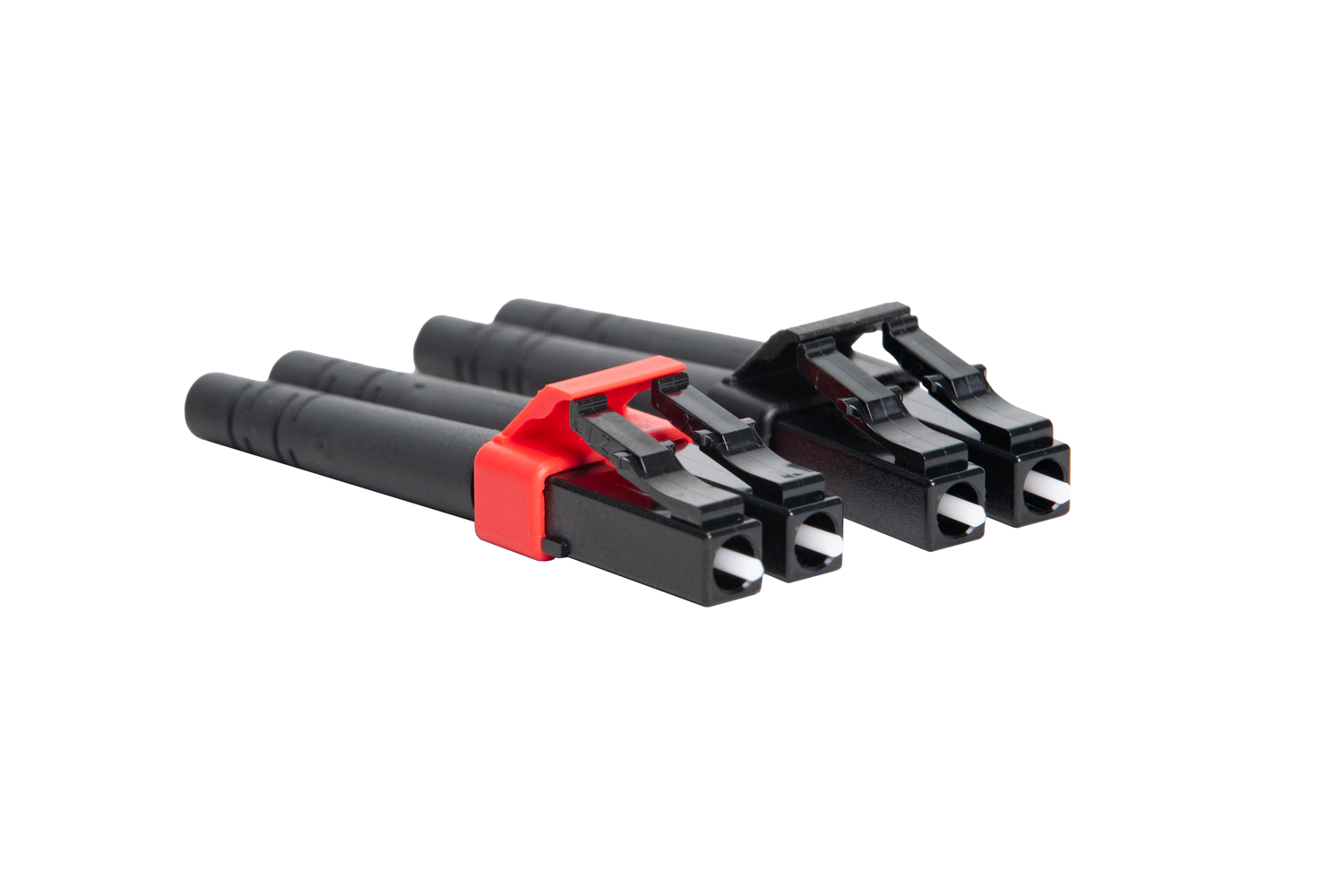

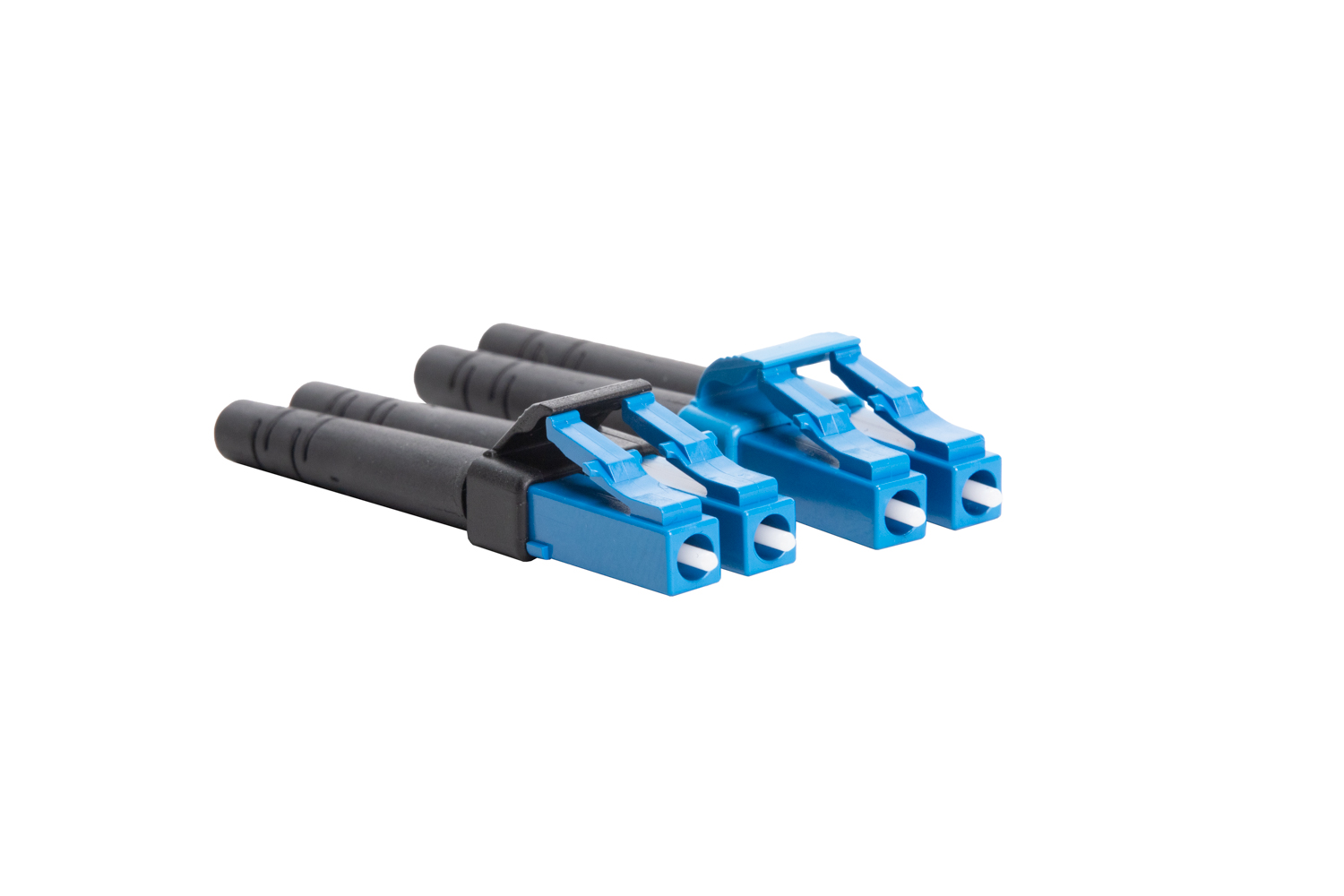

LC / UPC Duplex PRO ®: Matched single-chassis connectors made of high-performance, precision-aligned PVC.

SC / UPC Simplex PRO ®: Single chassis independent connectors manufactured in high performance PVC and precision alignment.

Certifications and standards:

• Exceed GR-326-CORE performance requirements.

• Conforms to IEC 61754-20.

• UL listed and certified random coupling.

REEL ROX R310

Material:
Made of high quality ABS PVC for maximum strength and durability.

Main features:

• Front door with locking latch (made of ABS PVC).

• Ergonomic top handle for easy transport.

• Rear safety locking brake.

• Moisture resistant.

Reel dimensions:

• Reel 292mm x 391.7mm x 240.5mm

REEL ROX R380

Material:
Made of high quality ABS PVC for maximum strength and durability.

Main features:

• Front door with locking latch (made of ABS PVC).

• Ergonomic top handle for easy transport.

• Rear safety locking brake.

• Moisture resistant.

Reel dimensions:

• Reel: 338mm x 488.2mm x 340.6mm

REEL SCHILL GT450

Material:
Made of high quality ABS PVC for maximum strength and durability.

Main features:

• Front door with locking latch (made of ABS PVC).

• Ergonomic top handle for easy transport.

• Rear safety locking brake.

• Moisture resistant.

Reel dimensions:

• Reel: 445mm x 555mm x 310mm

REEL SCHILL HT485

Material:
Made of high quality STEEL for maximum strength and durability.

Main features:

• Front door with locking latch (made of ABS PVC).

• Ergonomic top handle for easy transport.

• Rear safety locking brake.

• Moisture resistant.

Reel dimensions:

• Reel: 460mm x 547mm x 290mm

PROFESSIONAL CONNECTOR PROTECTION PRO4

Protective caps:

• Made of high quality black aluminum for strength and durability.

Protective caps:

• High resistance rubber stopper.

Environmental resistance:

• Protection against humidity and ultraviolet (UV) rays.

EXTERNAL PROTECTION OF THE PRO4 CABLE

Outer protective mesh:

• Made of braided nylon with reinforced polyamide monofilaments.

Main characteristics:

• High resistance to abrasion.

• Excellent durability for intensive use.

• Effective protection against humidity and ultraviolet radiation (UV).

INDIVIDUAL FIBER PROTECTION PER CHANNEL

Outer cover:

• Military grade black coating for superior protection.

Internal Structure:

• Internal reinforced armor (armor plating) that guarantees additional resistance.

Outstanding features:

• High mechanical resistance.

• Excellent flexibility for easy handling and installation.

• Effective resistance to humidity and ultraviolet radiation (UV).

FANOUT PRO4 (Fiber splitter)

External construction:

• Manufactured from high quality aluminum, designed for maximum strength and durability.

Environmental resistance:

• Totally watertight, resistant to moisture and ultraviolet (UV) rays.

CABLE SECTION PRO4 - 5,6 mm

4 MultiMode OM3 and OM4 fibers (50/125µm)

4 SingleMode OS2 fibers (9/125μm)
